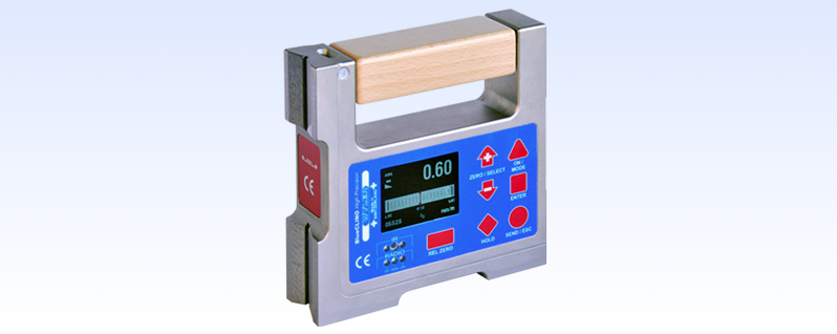

The inclination measuring instrument BlueCLINO High Precision is based on the successful standard BlueCLINO, which has a measuring range of ±60°. This huge measuring range has opened new and interesting applications for the standard BlueCLINO such as the construction of antennas or road and railroad construction. But, when it comes to the precise alignment of machine tool components, the standard BlueCLINO quickly reaches its limits. This is exactly where the new BlueCLINO High Precision comes into the picture: with a measuring range of ±1° and scraped bases (left and below), this instrument provides the necessary precision for small inclinations, which is required in precision machine tool building.

The BlueCLINO High Precision combines the accuracy of an angular BlueLEVEL with the flexibility of a BlueCLINO.


The BlueCLINO High Precision is well suited for the following applications:

  • Measurement and alignment of vertical guideways
  • Measurement and alignment of horizontal and vertical machine parts
  • Comparison of horizontal and vertical guideways. The comparison of a left and a right vertical guideway is specifically interesting with the help of the additional vertical base on the right hand side of the instrument
  • Squareness-measurement
  • The BlueCLINO High Precision can be integrated in any BlueSYSTEM by using the wireless connection with Bluetooth®

BlueCLINO High Precision has the following functions and features:

  • Large and very easy-to-read color display
  • Radio transmission, based on Bluetooth technology
  • Various color profiles can be chosen

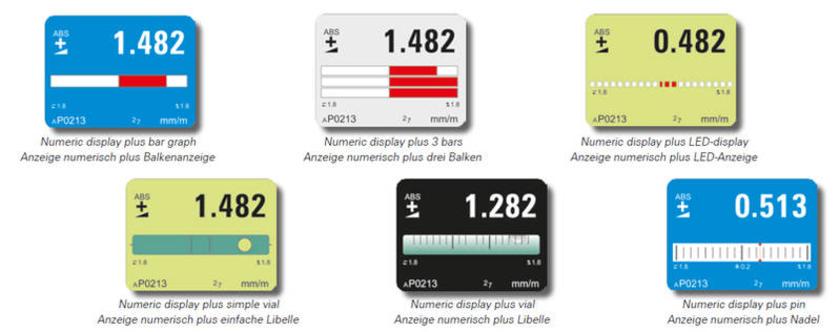

  • Various display methods are available, e.g. bar graphs or spirit levels can be chosen
  • All current units can be indicated
  • Measuring range of ±20mm/m
  • High precision due to the rugged, rust-protected housing made of cast iron with prismatic and scraped bases on the left hand and lower side of the housing, combined with an integrated temperature compensation
  • Right hand base is precision ground
  • Simple zero-adjustment with the integrated software and a reversal measurement
  • Built-in cross vial for easy alignment of the vertical axis in order to avoid twist errors
  • The BlueCLINO High Precision is compatible with the full range of WYLER digital sensors
  • Powered by standard 1.5V batteries, rechargeable batteries or with mains adapter
  • Fulfils the strict CE requirements (immunity against electromagnetic smog)


​Can be adjusted to local gravity,

therewith ensuring the best accuracy at your latitude


Options:

  • Magnetic inserts in the left hand vertical and the bottom horizontal base possible


See more Details and Specifications by Downloading the Catalog Page Here

WYLER - BlueCLINO High Precision
