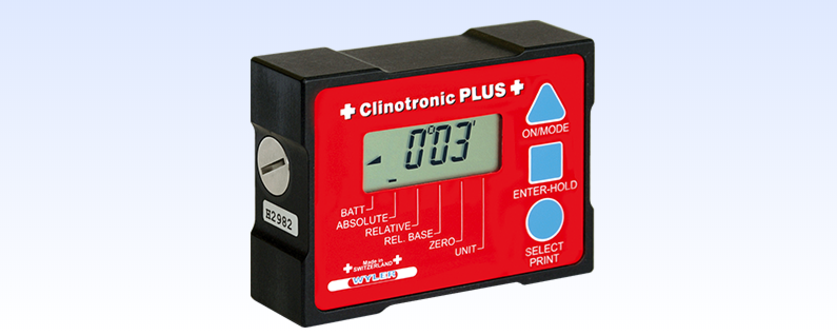

The compact inclination measuring instrument Clinotronic PLUS provides a measuring capacity of ±45 degrees. Four precisely machined exterior reference surfaces assure accuracy and repeatability of measurements in any quadrant. Selected by push-button, any units suitable for inclination measurement may be applied to the display. Even slope indication based on a relative base of selectable length is possible. Simple push-button operation automatically sets absolute as well as relative zero. The RS485 interface allows a connection to other WYLER instruments or directly to a PC using a special cable.
All indicated values are computed prior to display, by interpolation of calibration values stored. If required, an integrated calibration mode may be actuated in order to replace the stored calibration data. For this purpose, the Clinotronic PLUS ±45° must, with the aid of suitable equipment, be accurately inclined, using five-degree steps over the range of ±50 degrees.
The measuring principle is based on a differential capacitance measurement of a pendulum providing excellent repetition, hysteresis as well as start-up behaviour. Combined with a complex evaluation algorithm, this forms the base of a highquality handheld tool. The latest version of the reliable inclination measuring instrument comes with a number of new interesting advantages. The most important of them are:
Aluminium housing, hard anodised, with heavier walls for more stability.
Fulfils the strict CE requirements (immune to electromagnetic smog)
Powered by standard 1.5V batteries, allowing cost-efficient reliability all over the world
Various connecting possibilities to a PC
All the well known functions remain the same such as e.g.: ~ Easy zero-point adjustment ~ Wide variety of different units displayed ~ Absolute and relative measurement
As options magnetic inserts and threaded holes are available
