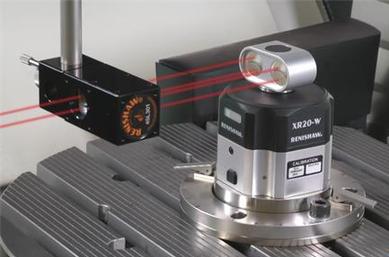

Renishaw - XR20-W Rotary Axis Calibrator

Measurement of rotary axis positional accuracy to within ±1 arc second

Totally wireless operation and modular mounting systems ensure suitability for a wide range of machines. Optional software allows operation 'off-axis', essential for many 5 axis machines.


Features and benefits

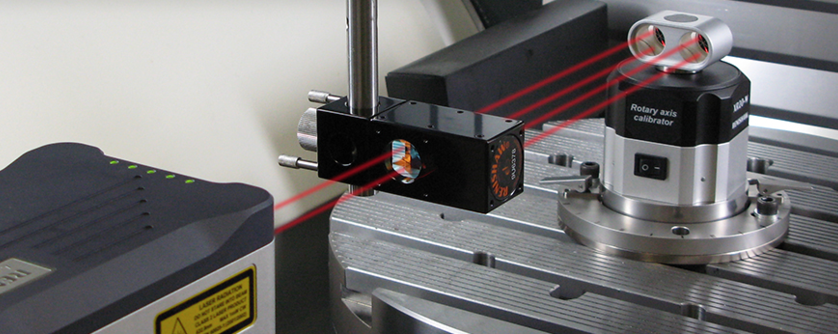

XR20-W rotary axis calibrator provides a high integrity, non-contact reference measurement, remote from the axis under test.

  • ​Automated Calibration
  • ​High Accuracy and Repeatability
  • Wireless Operation
  • Flexible Mounting System
  • Compact and light weight
  • ​Off Axis Capability
  • Integrated Target and Alignment Optics
  • ​Extended Auto Calibration and Pre-Test Cycles

Interested in the Renishaw XR20-W Rotary Calibrator? Request a FREE quote today.
